Art. US 9254 – US 9255 | Manual hose reel with crank
Manual hose reel, crank, LS series, made of black painted steel, suitable for hoses with a maximum length of 65′ with a 1″ diameter or a maximum length of 80′ with a 3/4″ diameter. The standard hose reel is supplied without a hose and can be used to wind diesel, compressed air and low and high pressure water hoses.
| Art. | Max working pressure | Connection threads IN-OUT | Suitable pivoting wall bracket | Weight | Dimensions (LxWxH) |
| US9251 | 8700 psi | 1/2″(M)-1/2″(F) | 9767 | 18 lb | 10″x21″x19″ |
| US9252 | 9768 | 20 lb | 11″x21″x19″ | ||
| US9253 | 9773 | 27 lb | 12″x21″x19″ | ||
| US9256 | 9769 | 27 lb | 13″x21″x19″ | ||
| US9254 | 1500 psi | 1″(M)-3/4″(F) | 9773 | 27 lb | 13″x21″x19″ |
| US9255 | 9769 | 33 lb | 19″x21″x19″ | ;{f120} | |
| US9553 | 3000 psi | 1/2″(M)-1/2″(F) | - | 22 lb | 13″x16″x16″ |
| US9552 | - | 29 lb | 13″x20″x18″ | ||
| US9559 | 1500 psi | 1″(M)-3/4″(F) | - | 31 lb | 20″x11″x18″ |
| US9560 | - | 33 lb | 21″x11″x19″ |

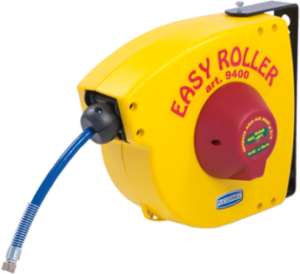

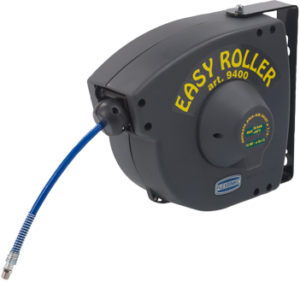

Art. US 9400+3610 – US 9400+3615 – US 9408 | Automatic Hose Reel for Compressed Air and Water

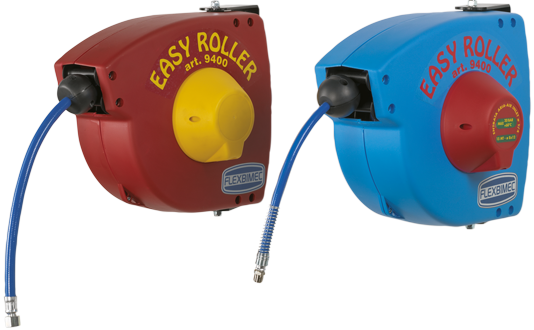

Automatic winder, spring-loaded hose reel, with plastic casing (in nylon and polypropylene) and revolving wall support, suitable for use with compressed air and water (temperature range: 14°F – 140°F). Inlet connection air: 1/4″ NPT. Max working pressure: 300 psi. The standard housing color is red with a yellow cover. Also available in blue with a red or dark grey cover.
| Art. | Hose length | Hose diameter | Connection threads | p.max | Weight | Dimensions (L-W-H) (mm) |
| US9400+3610 | 33′ | ;{f120}Ø 5/16″ ;{f120} | ;{f120}Ø 1/4″M | 300 psi | 17.9 lb | 8.7″x12″x15″ |
| US9400+3615 | 50′ | 18.1 lb | ||||
| US9408 | 33′ | ;{f120}Ø 3/8″ | ;{f120}Ø 3/8″M |
