Automatic Hose Reels Enclosed Series

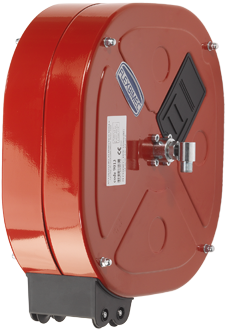

Automatic rewind, spring-driven hose reel 9013

Art. US 9013 – US 9023 – US 9025 | Spring-activated hose reel made of painted steel – careened

The standard painted steel careened hose reel series is suitable for use at distances of 20m max (hose Ø 1/2″) and 25m max (hose Ø 3/8″). The standard hose reel is supplied without a hose and can be used to wind oil, antifreeze, grease, air, water and diesel hoses.

Version with spring brake kit/HB (ex. US 9013/HB) on request.

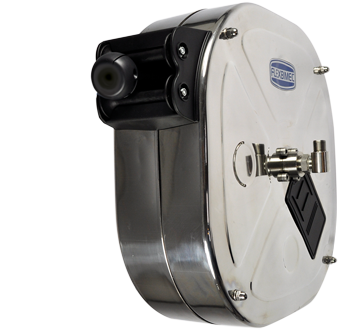

Stainless steel spring hose reel - careened

Art. US 9547 – US 9548 – US 9549 | Stainless steel spring hose reel – careened

Standard series AISI 304 stainless steel careened spring-activated hose reel is suitable for use at distances of 20m max (hose Ø 1/2″) and 25m max (hose Ø 3/8″). The standard hose reel is supplied without a hose and can be used to wind oil, antifreeze, grease, air and low and high pressure water hoses.

Version with spring brake kit/HB (ex. US 9546/HB) on request.

Art.Max working pressureConnection threads IN-OUTMax Ø hoseWeightSuitable pivoting wall bracketDimensions (L-W-H)
US9013 8700 psi
M1/2″-F1/2″
1/2″57.2 lb977851″x22″x18″
US90231/2″59.4 lb977863″x22″x18″
US90253/8″63.8 lb977863″x22″x18″
US9547 2900 psi
1/2″57.2 lb975451″x22″x18″
US95481/2″59.4 lb975463″x22″x18″
US95493/8″63.8 lb975463″x22″x18″
