Wheeled pneumatic grease pump kits

Pneumatic grease kits on wheels, mobile systems suitable for 18, 25, 50, and 180 kg drums for any type of internal and external environment. Maximum pressure: 400 bars.

Complete pneumatic grease supply kit, suitable for any kind of inside or outside use.

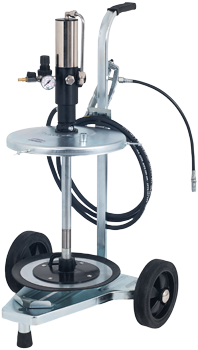

Mobile pneumatic grease supply kit 4920C

Art. no. US 4920C – Wheeled pneumatic grease pump kits for 35 lbs

Mobile pneumatic grease supply kit for 35 lb – buckets, consisting of:
– Pneumatic grease pump, art. no. US 4020;
– Pressure regulator, art. no. 7200;
– 10’ – high pressure hose SAE 100 R2 AT, 1/4“, art. no. 4503;
– High pressure grease control gun, 1’ steel braid outlet hose and 4 – jaws – hydraulic coupler, art. no. 4205;
– High pressure Z – swivel, art. no. 4221;
– Follower plate, ø 12.2’’, art. no. 4314;
– Metal drum cover ø 12’’ – 14’’, art. no. 4302;
– Dolly with 2 wheels, art. no. 4350.

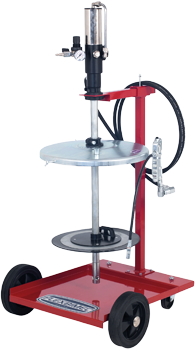

Mobile pneumatic grease supply kit 4980C

Art. no. US 4980C – Wheeled pneumatic grease pump kits for 120 lbs

Mobile pneumatic grease supply kit for 120 lb – drums, consisting of:
– Pneumatic grease pump, art. no. US 4060;
– Pressure regulator, art. no. 7200;
– 10’ – high pressure hose SAE 100 R2 AT, 1/4“, art. no. 4503;
– High pressure grease control gun, 1’ – steel braid outlet hose and 4 jaws – hydraulic coupler, art. no. 4205 ;
– High pressure Z – swivel, art. no. 4221;
– Follower plate, ø 14.6’’, art. no. 4317;
– Metal drum cover, ø 13’’ – 15’’, art. no. 4305;
– Dolly with 4 wheels, art. no. 4360.

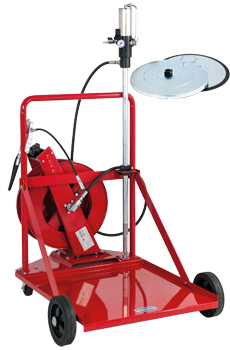

Wheeled pneumatic grease pump kits for 400 lbs

Art. no. US 4910 – Wheeled pneumatic grease pump kits for 400 lbs

Mobile pneumatic grease supply kit for 400 lb – drums, consisting of:
– Pneumatic grease pump, art. no. US 4080;
– Pressure regulator and air fi lter with moisture separator, art. no. 7180;
– Open hose reel, art. no. US 9016;
– 50’ – high pressure hose SAE 100 R2 AT, 1/4“, art. no. 4515;
– 6.5’- connection hose SAE 100 R2 AT, 1/4”, art. no. 4502;
– High pressure grease control gun, 1’ – steel braid outlet hose and 4 – jaws – hydraulic coupler, art. no. 4205;
– Follower plate, ø 23’’, art. no. 4319;
– Metal drum cover, ø 24’’, art. no. 4308;
– Dolly with 4 wheels and mounting bracket for hose reel, art. no. 4380/P.

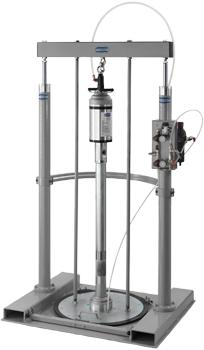

Mobile grease extrusion unit

Art. no. US 4999/200INP – Mobile grease extrusion unit

The stationary grease extrusion unit with plate is made up of a special pump lifting device suitable for pneumatic grease pumps, the “Power Bull” series, and a grease compaction system that works on a pneumatic circuit activated by a valve control.

This unit is used when the grease has a high degree of viscosity or is very dense due to low temperatures and is therefore difficult to pump. For use with grease pumps Art. No. 4046 – 4047 – 4048 – 4049 – 4050 – 4051. The kit includes the pneumatic grease pump 50:1 Art. no. 4049. Suitable for use with 180 kg drums.

Art.Max outlet pressureDeliveryConnection compressed airCompressed air supplyWeightDimensions (LxWxH) (mm)
4920C400 bar2400 g/minF 1/4″ BSP2-8 bar13 kg510x690x690
4920CE400 bar2400 g/minF 1/4″ BSP2-8 bar13 kg510x690x690
Art.Max outlet pressureDeliveryConnection compressed airCompressed air supplyWeightDimensions (LxWxH) (mm)
4980C400 bar2400 g/minF 1/4″ BSP2-8 bar18 kg600X600X1050
Art.Max outlet pressureDeliveryConnection compressed airCompressed air supplyWeightDimensions (LxWxH) (mm)
4910C400 bar2400 g/minF 1/4″ BSP2-8 bar72 kg900x870x1400
Art.4999/304999/604999/2004999/200INP
Pump models4020406040804049
Compression ratio 50:1
Max outlet pressure 400 bar
Pressure pneumatic circuit 1-3 bar
Pressure performance compacting system 1 bar = 50 kg spinta
Suitable for drums of18 kg50 kg180 kg
Dimensions (LxWxH) (mm 1090x630x17501090x630x1900
Weight85 kg110 kg170 kg220 kg
