Manual Grease Supply Kits

Greasing kits and manually operated grease pumps are also available on wheels. Thanks to its compact size and the absence of any electrical or pneumatic connections, the greasing kit is the ideal mobile unit for any lubrication use in the field.

manual grease pump supply kit US 5100

Art. no. US 5100 – Portable pneumatic grease pump kit

Portable, manual grease kit, 35 lb metal barrel, lever grease pump, tracking plate, ø 9”, art. no. 07 5131, 5′- R1T rubber hose, ø 1/4″, ball valve and rigid outlet tube with 4 jaws – hydraulic fitting.

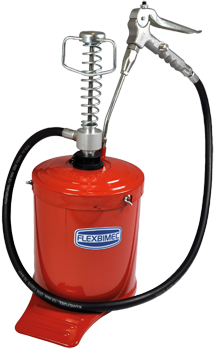

Portable pneumatic grease pump kit

Art. no. US 5110 – Portable pneumatic grease pump kit

Portable, manual grease supply kit, consisting of:
– Metal 11 lb – pail with cover;
– Manual, spring – loaded piston grease pump;
– Follower plate;
– 5’ – rubber hose, ø 1/2” mm;
– Control gun with selection switch and rigid outlet pipe with 4 – jaws – hydraulic coupler.

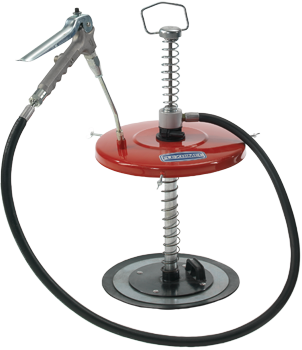

manual grease supply kit US 5111

Art. no. US 5111 – Portable pneumatic grease pump kit

Portable, manual grease supply kit, suitable for 35 lb – pails, consisting of:
– Manual, spring – driven piston grease pump;
– Follower plate, 12’’ – 10’’ mm, art. no. 4314;
– 5’ – rubber hose, ø 1/2”;
– Metal drum cover, ø 11’’ – 13’’, art. no. 4302;
– Control gun with selector lever and rigid outlet pipe with 4 – jaws – hydraulic coupler.

Manual grease gun filler pump kit US 5127

Art. no. US 5127 – Manual pump kit for grease refills

Manual grease gun fi ller pump kit, consisting of manual lever action grease pump, metal drum cover, follower plate and rigid pipe with adapter for the connection of grease guns. Suitable for grease up to a viscosity of NLGI 2.

Art.Max outlet pressureDelivery per strokeConnectionsWeightDimensions (LxWxH) (mm)
5100250 bar8 gM 1/4″ BSP5,5 kg240x490x630
Art.Max outlet pressureDelivery per strokeØ Suction tubeLength suction tubeWeightDimensions (LxWxH) (mm)
5110750 bar8 g28 mm310 mm6,5 kg350x240x550
Art.Delivery per strokeØ Suction tubeLength suction tubeØ drum coverØ follower plateØ pails/drumsSuitable for pails/drums ofWeight
512630 g40mm335mm283mm275mm240-283mm18 kg5 kg
512730 g40mm450mm330mm310mm290-330mm20 kg6 kg
512830 g40mm750mm400mm390mm360-400mm50 kg8 kg
